How wind tunnel testing is essential to preparing for the demonstrator’s first flight

Wind tunnel testing is a critical milestone for any aircraft. For the E-Fan X, the test programme has offered invaluable insight into the hybrid-electric demonstrator’s aerodynamic design, low-speed performance and handling qualities in preparation for its first flight in 2021.

It’s an early July morning in Filton, UK, and a flurry of activity is underway at Airbus’ wind tunnel test centre. A scale model of a BAe 146 RJ100—a short-haul regional airliner originally designed in the 1980s—is being attached to the Filton wind tunnel in preparation for testing. In fact, it is the same wind tunnel model used in the certification of the original BAe 146 RJ100 aircraft.

But this test model is not exactly like the original.

“The BAe 146 RJ100 aircraft is not designed to have hybrid-electric systems on board. We’re trying to take something that exists and turn it into a hybrid-electric demonstrator.”

Wind tunnel testing: a key milestone for E-Fan X

Wind tunnels are tubes in which powerful fans are used to exert force and pressure on a scale model of an aircraft. The air moving around the static test model helps engineers to understand how a real aircraft would react to this pressure when flying. All Airbus aircraft undergo wind tunnel testing in preparation for flight. In addition to aircraft, spacecraft and rockets also undergo wind tunnel testing.

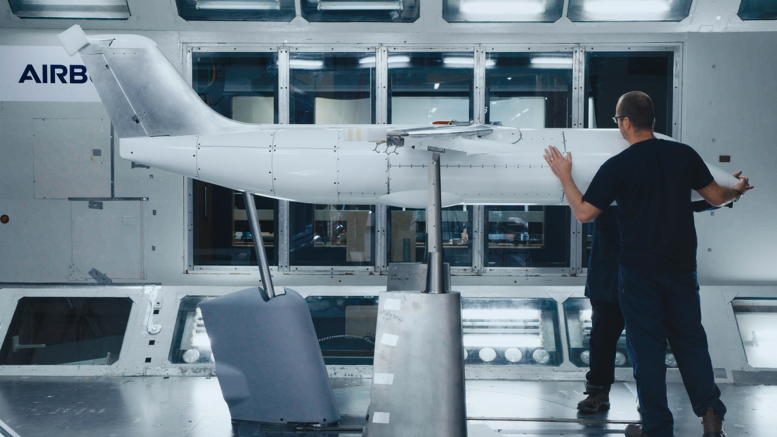

During its testing, the E-Fan X was attached to the Filton low-speed wind tunnel, whose test section measures 3.65 x 3.05 metres. Giant fans expelled air at speeds of up to 216 mph. Small threads attached to the test model enabled engineers to analyse the movement of air from a variety of angles. At a 1:8 scale model, the E-Fan X was tested at a wingspan of over 3 metres.

“The E-Fan X is an aircraft demonstrator, so it’s not optimised for aerodynamic design,” says Oliver Family, Airbus Head of Overall Aircraft Design, E-Fan X. “But to fly the demonstrator safely and efficiently, the aerodynamics impacts need to be fully understood.”

A wealth of insight into aerodynamic design & handling

For Airbus engineers, the key takeaway from wind tunnel testing is a better understanding of the E-Fan X’s overall aerodynamic design. In addition, the test programme offered insight on all aspects relating to low-speed performance and handling qualities.

“The only change we discovered during the test programme is that we need to modify the porosity of some of the devices inside the ducts to ensure they relate correctly to the full-scale E-Fan X model devices,” says Paul Gingell, Airbus Wind Tunnel Test Engineer.

Successful completion of wind tunnel testing marks another key milestone in the E-Fan X’s development. Future milestones include flight tests for characterisation and installation of the 2MW motor on the test aircraft in 2020.

Airbus release
